PW-4x4Q Stair Climbing Wheelchair

Stair climbing wheelchair
PW-4x4Q_2
PW-4x4Q_8
PW-4x4Q_5
PW-4x4Q_6
18
11
Steps climbing wheelchair

PW-4x4Q Stair Climbing Wheelchair

US$10,500.00

Clear

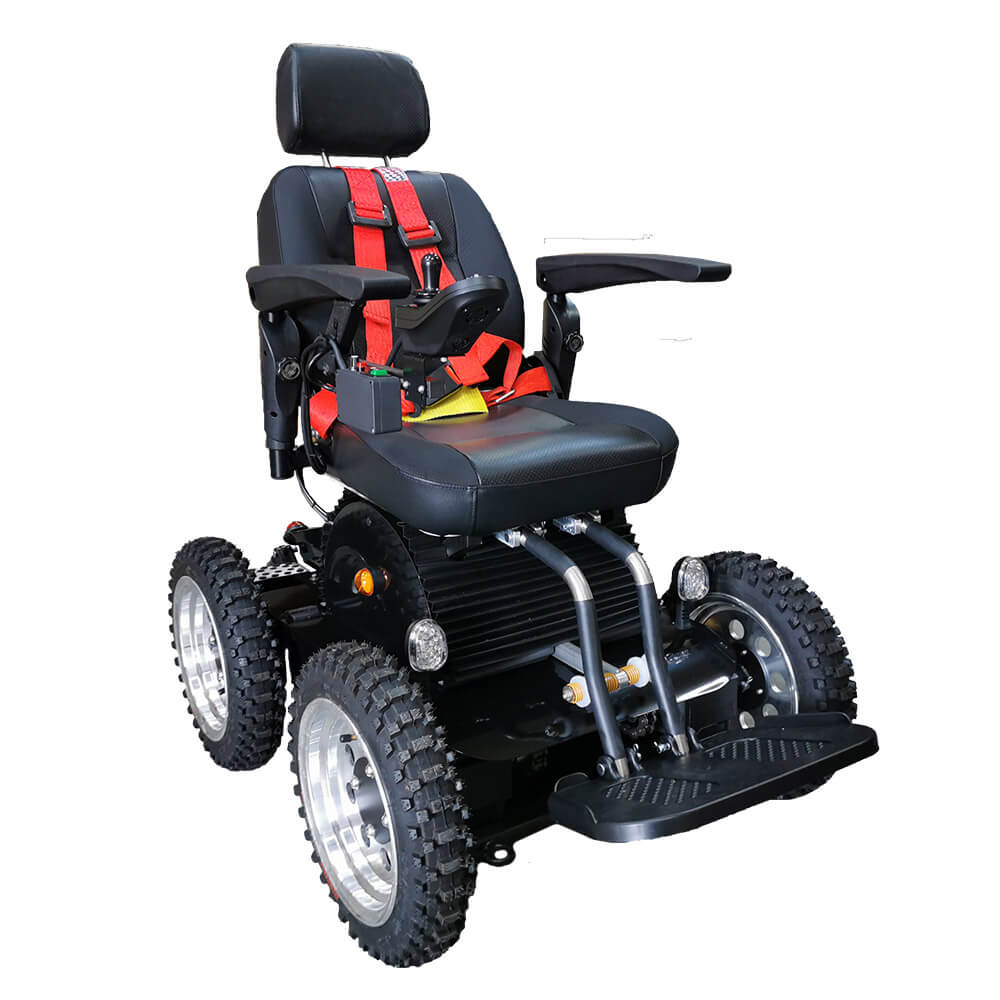

This PW-4x4Q all terrain power chair is not only a stair climbing wheelchair, but also a 4 wheel drive. Kindly check the new features of our latest version of PW-4x4Q. If you are very adventurous and would to go anywhere without limitation, this all terrain power chair PW-4X4Q is definitely the best product that you can find in the market. Powerful motors and the seat with Gyro balancing system enable safe and easy stair climbing capabilities. We have added new features to this latest deluxe version too.

  • Li-ion Batteries (More capacity, durable and efficient vs our previous Lead Acid Batteries)
  • Power tilt-in-space seat for more comfort.

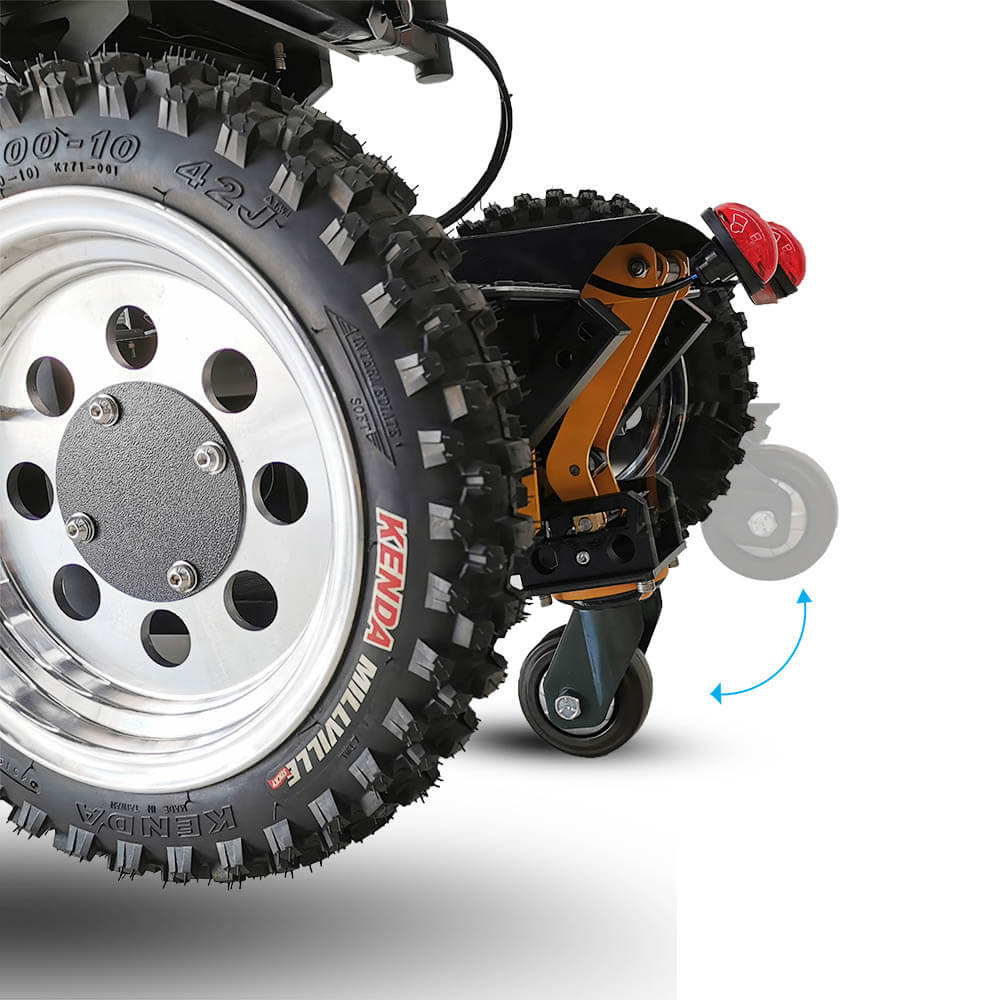

  • Added the 5th wheel for electric saving mode (Operate with 2 front wheels and the 5th wheel on normal surface environment. Meaning 3 wheels only).

Product is sold with standard solid tires just like the main photo. Extra wide pneumatic tires are optional should you want to run on snow and beach.

Please note: Upon order confirmation, we will take about 15-30 days to prepare the PW-4X4Q Stair Climber , depends on the existing order queue and parts on hand.

SKU: PW1008 Categories: ,
  • Description
  • Specification
  • Warranty
  • Return Policy

Description

PW-4x4Q Stair Climbing Wheelchair is an all terrain 4-wheel drive power chair that can handle difficult terrain including climb up and down stairs, steep slopes, snow, sandy beach, muddy or bumpy roads etc. Often it could be frustrated when you face curbs and a few steps in daily life, and sometimes you may want to excel your adventurous mind. Let PW-4x4Q helps you to overcome places that you didn’t go.

  • This wheelchair is equipped with a gyro system that synchronize the angle of seat in relation to the ground. Seat angle is automatically adjusted on stairs or slopes, which allows your body to maintain an upright position.
  • It can climb up and down the as high as 15cm (5.9 inches) at 25 degree. (Depends on the user’s physical condition and actual environment.)
  • Able to make a 360° U-turn on the spot, with a turning radius of only 49 cm (19.2 in).

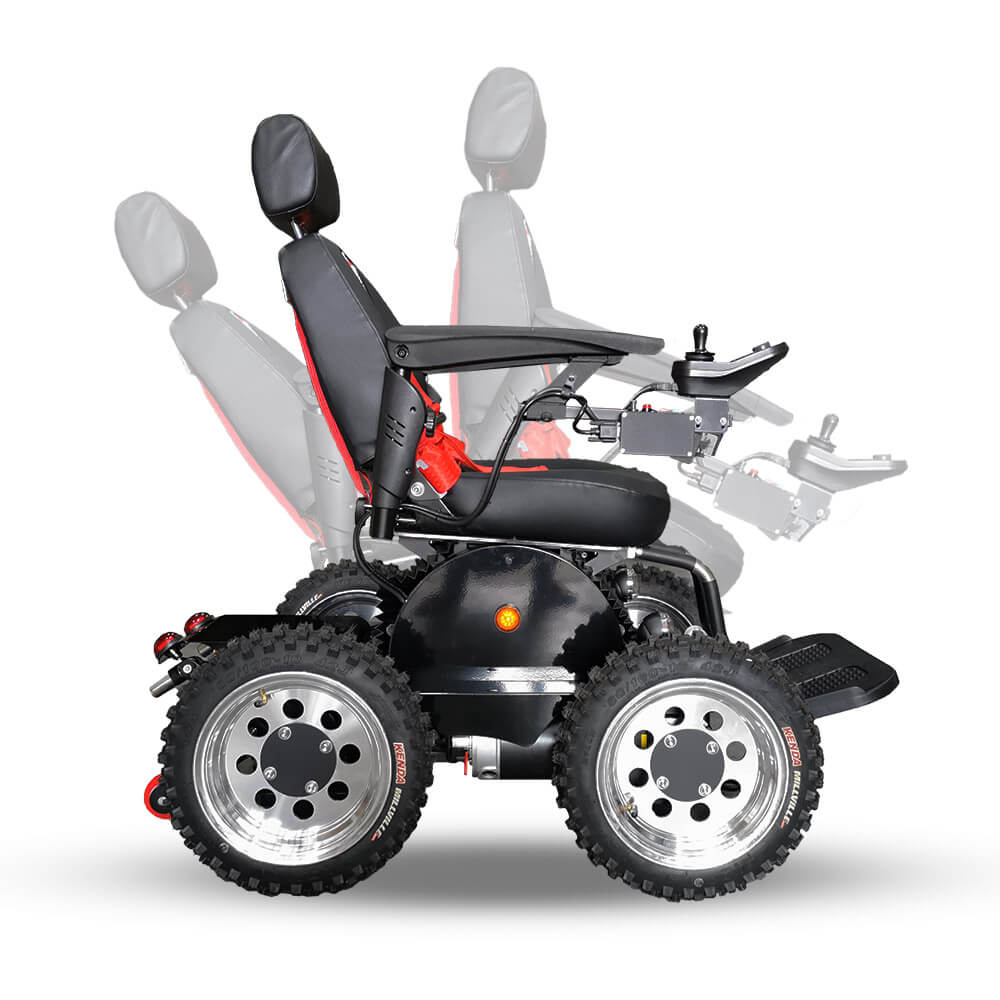

  • Power tilting seat to allow more comfort.
  • State of the art PG drive controller, with excellent control precision and LED display.
  • Travels up to 20 km (12.4 miles) of climbing and driving on rough terrain; and up to 30km (18.6 miles) on flat surfaces.
  • Higher sitting position for better social interaction and vision.
  • Racing car seat design with deep contoured high support memory foam.
  • Rear and side LED lights makes PW-4x4Q highly visible while driving on the road, especially at night.
  • Raisable armrests are height adjustable.
  • A friend can stand behind the seat to travel together. (see photo sample on the top)

*Optional extra wide tires are available for snow and beach environment. Please feel free to contact us for more details.

Specification

Max speed 7.5 km/h
Weight with batteries 197 kg
Max Load Capacity 150 kg
Seat Width 18″ Inch
Seat to floor 150 kg
Size with standard wheel 115 X 73 X 137 cm
Size with large wheel (Optional) 115 X 88 X 137 cm
Max distance per full charge 15 km
Charging time 8-10 hr
Max slope capability 30°
Recommended Max Step Height Capability 12 cm
Step climble angle 25°
Batteries 12V 27AH X 4 pcs
Level rack motor 300W x 1 pcs
Driving motor 1350W x 2 pcs
Standard Wheel 15.5″ Inch
Large Wheel (Optional) 42cm
Brake Electromagnetic braking
Drive manner Four wheel drive
Arm Rest Raisable
Foot Rest Foldable
Back Rest Foldable
